Double Roller Crusher

Product description

Double Roller Crusher: The Ideal Choice for Sand and Aggregate Production

The double roller crusher, also known as a twin-roll crusher or roller sand making machine, marks a breakthrough in sand and aggregate production equipment. It uses two motors to drive twin rollers, applying pressure and grinding to crush materials. It is ideal for fine crushing operations where feed size is less than 80mm and output size ranges from 50 mesh to 20mm.

Why Choose Huashengming Double Roller Crusher?

1. No Frequent Part Replacements
   • Unlike hammer crushers, it eliminates the need for regular replacement of wear parts.
2. Superior Sand Quality
   • Produces well-shaped sand with reasonable gradation and minimal over-crushing.
3. Long-Lasting Durability
   • Roller sleeves last over two years, outperforming hammer and impact crushers.
4. Patented Technology
   • Huashengming’s high-chromium manganese steel rollers, precise discharge adjustments, and roller design are patented.

Suitable Materials

The double roller crusher is perfect for crushing and sand-making operations with materials such as:

PebblesCalciteQuartzGlassMarbleBasaltGraniteLimestoneIron oreWeathered sand

How It Works

The crusher uses two independently driven rollers rotating in opposite directions. The material fed between the rollers is crushed by compressive and grinding forces. When encountering unbreakable or excessively hard materials, the hydraulic cylinder or spring system allows the rollers to retract, protecting the machine from damage. The hydraulic system also controls the gap between rollers, ensuring adjustable discharge sizes.

Model Variants

Huashengming offers double roller crushers in various sizes to meet diverse production needs:

1. Small Spring Roll Crushers
   • Models: 2PGT400×250, 2PGT400×400, 2PGT610×400
   • Capacity: 2-20 tons/hour
   • Ideal for small-scale sand plants.
2. Medium Spring Roll Crushers
   • Models: 2PGT750×500, 2PGT800×600
   • Capacity: 10-50 tons/hour
   • Perfect for new sand plants with lower investment costs.
3. Medium Hydraulic Roll Crushers
   • Models: 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800
   • Capacity: 20-80 tons/hour
   • Intelligent hydraulic systems for higher efficiency and lower costs.
4. Large Hydraulic Roll Crushers
   • Models: 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000
   • Capacity: 80-400 tons/hour
   • CNC-controlled flagship series, suitable for large-scale sand plants with one-touch start/stop.

Customization Options

Huashengming offers various configurations tailored to customer needs:

• High, standard, and low configurations.
• Options for CNC, mobile, electric, or diesel-powered models.

Key Advantages

1. Excellent Product Shape
   • Minimal over-crushing, ensuring high-quality output.
2. Adjustable Output Size
   • Easy control over particle size for diverse applications.
3. Efficient Design
   • Prevents clogging and sticking with a streamlined structure.
4. Powerful Performance
   • Dual motors provide robust power for demanding tasks.
5. Durable Rollers
   • Made from high-wear-resistant manganese steel for extended service life.
6. Economical Investment
   • Low operational costs and high efficiency.

For tailored recommendations, contact Huashengming to explore the best options for your specific needs. Maximize efficiency and minimize costs with Huashengming’s advanced double roller crusher technology!

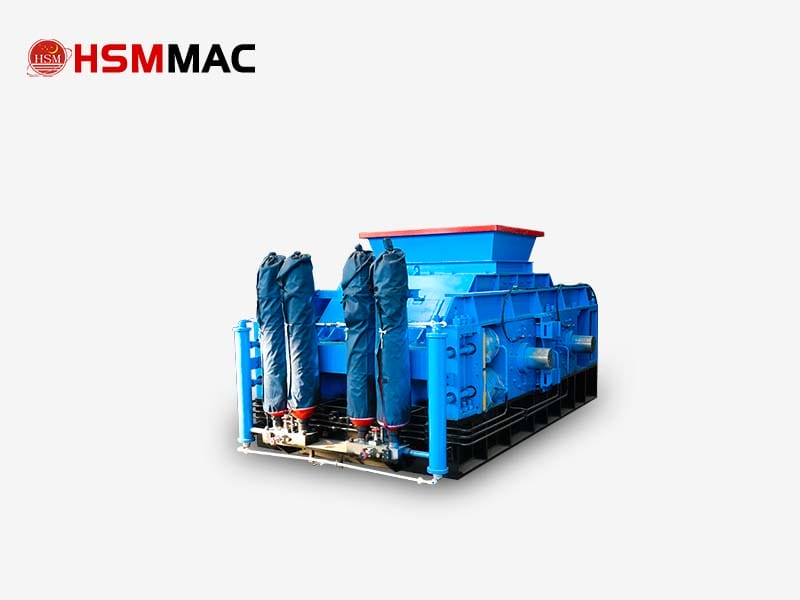

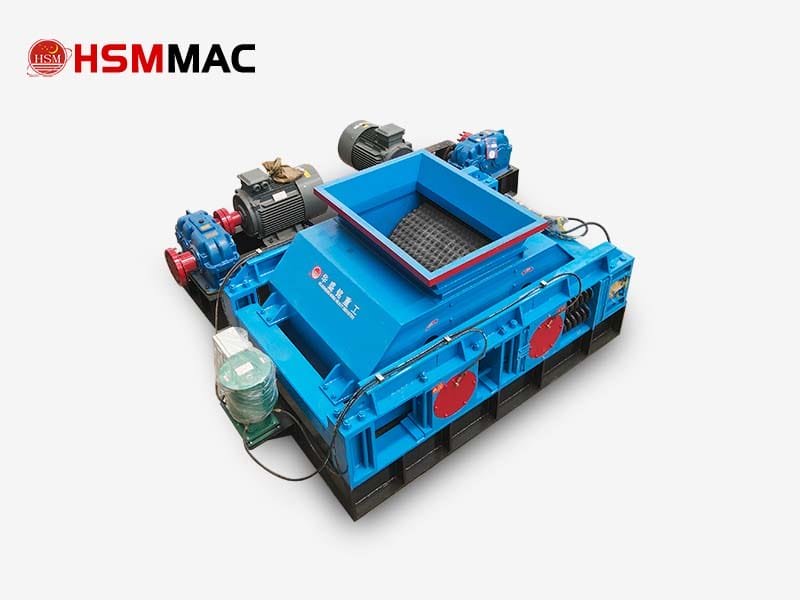

Smooth Double Roll Crusher

Large Double Roll Crusher

working principle

The crusher uses two independently driven rollers rotating in opposite directions. The material fed between the rollers is crushed by compressive and grinding forces. When encountering unbreakable or excessively hard materials, the hydraulic cylinder or spring system allows the rollers to retract, protecting the machine from damage. The hydraulic system also controls the gap between rollers, ensuring adjustable discharge sizes.

Technical parameters
