Flat Roller Mill | Roller Crusher For Brick Factory

Applicable materials:River pebbles, calcite, quartz stone, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt, etc.

  • Feed size:25-100mm
  • Productive capacity:2-400t/h

Application scope:Highways, high-speed railways, high-rise buildings, municipal administration, hydropower dam construction, concrete mixing stations, sand and gravel yards, etc.

Follow Us:

Product description

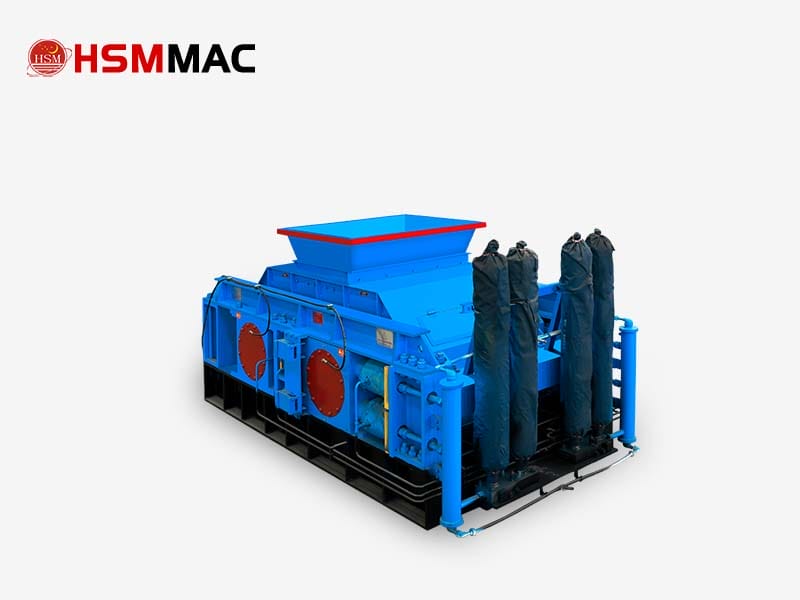

Flat Roller Mill | Roller Crusher For Brick Factory by Huashengming heavy industry crushes materials under 250MP strength.

Flat Roller Mill



In the past, brick factory owners struggled to find suitable crushers due to size and output issues. Now, industrial technology has improved. Huashengming Heavy Industry produces double roller crushers with outputs from 2 to 400 tons. They offer over 20 models for fine crushing operations. Feed particle size is less than 80mm, and finished product size ranges from 50 mesh to 20mm. Suitable for medium and fine crushing of medium hardness materials. Ideal for limestone, slag, coke, and coal. Used in cement, chemical, electric power, metallurgy, and building materials sectors.

Features of Flat Roller Mill | Roller Crusher For Brick Factory

Flat Roller Mill uses two independently driven rollers. These generate squeezing and shearing forces to crush materials. Materials fall between rollers through the feeding port. Finished products fall after being squeezed and crushed by the rollers. Rollers automatically give way to hard materials via hydraulic cylinders or springs. This increases the gap between rollers, allowing unbreakable materials to fall naturally. This prevents machine damage. Opposite rotating rollers adjust hydraulic pressure to control output particle size.

Flat Roller Mill

Applicable materials

Crushing and sand making of river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, limestone, weathered sand, diabase, granite, basalt and other materials.

double roller crusher

Why choose Huashengming

1. The Double roller crusher for gravel plant is better than the hammer sand making machine and does not need to replace wearing parts.
2. The sand has full grain shape, reasonable gradation, low over-grinding rate and high output.
3. Roller Crusher For Brick Factory have advantages over hammer crushers and impact crushers. The average service life of the roller skin is more than 2 years.
4. Huashengming’s high-chromium manganese steel wear-resistant material containing rare metal roller skin has been applied for in my country, the discharge particle size can be adjusted and has been applied for in my country, and the rock crusher roller has been applied for in my country.

flat roller mill

Model distinction

Flat Roller Mill can be divided into large, medium and small according to different models.
1. 2PGT400×250, 2PGT400×400, 2PGT610×400, with an output of about 2-20 tons per hour, belongs to small spring pea gravel stone hydraulic roller crusher, suitable for investment in small and medium-sized sand plants.
2. 2PGT750×500, 2PGT800×600, with an output of 10-50 tons per hour, belongs to medium-sized spring pea gravel stone hydraulic roller crusher, this model is suitable for new sand plants, with low investment cost
3. 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800, with an output of 20-80 tons per hour, belongs to medium-sized hydraulic pea gravel stone hydraulic roller crusher, hydraulic models are more intelligent, with higher output and lower cost.
4. 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000, with an hourly output of 80-400 tons, belong to the large flagship series of CNC hydraulic melon stone hydraulic roller crushers, suitable for medium and large sand plants, one-button start and stop, convenient and fast.
Gongyi Huashengming Heavy Industry Machinery Factory divides the equipment into five types: high-end, general-end, low-end, CNC, and mobile according to the actual situation of each customer. Customers can ask the sales manager to recommend the product type and performance suitable for them according to their actual situation. There are electric type and diesel-driven type. If you want to know the details, click to leave a message to me.

roller crusher

Live shooting

double roller crusher

Related links on this site:Hydraulic Double Roller Crusher
suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

flat roller mill operates through rollers. The mountain stone put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

Technical parameters

Specification and model

Roll diameter

(mm)

Feed size

(mm)

Productive capacity

(t/h)

2PGT400×250
φ400
≤25
2-10
2PGT400×400
φ400
≤25
5-12
2PGT610×400
φ610
≤30
5-20
2PGT750×500
φ750
≤30
10-40
2PGT800×600
φ800
≤40
12-50
2PGY800×800
φ800
≤40
40-50
2PGY800×1000
φ800
≤40
50-80
2PGY1000×800
φ1000
≤40
50-80
2PGY1000×1000
φ1000
≤40
80-100
2PGY1200×1000
φ1200
≤60
100-120
2PGY1200×1200
φ1200
≤60
120-150
2PGY1500×1000
φ1500
≤80
150-200
2PGY1500×1200
φ1500
≤80
200-250
2PGY1800×1000
φ1800
≤100
250-300
2PGY2000×1200
φ2000
≤120
300-400
