  • mini roller crusher

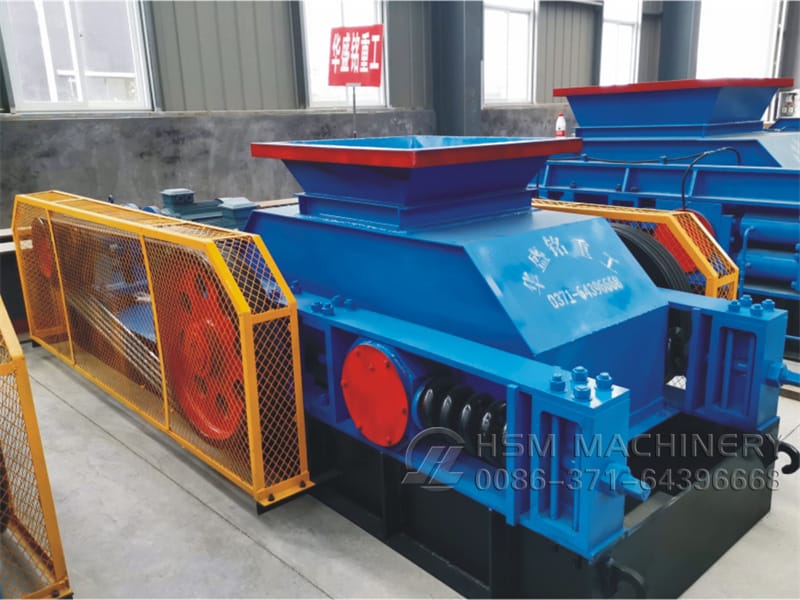

Granite roller sand making machine

Applicable materials:Ore crushing, chemical industry, cement production, silicate production, coal crushing, refractory, abrasive and construction industries.

  • Feed size:150 mm
  • Productive capacity:2-140 t/h

Application scope:Ore crushing, chemical industry, cement production, silicate production, coal crushing, refractory, abrasive and construction industries.

Follow Us:

Product description

Roller Crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. Roller crusher can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag etc.
suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

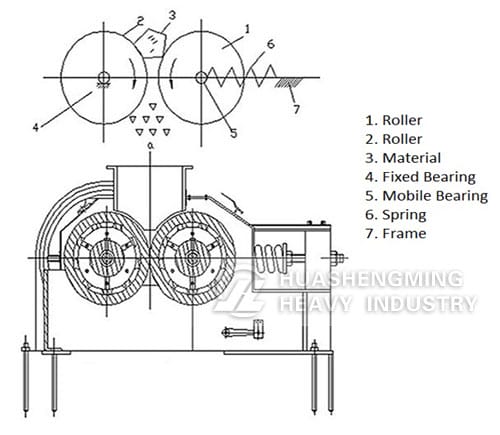

working principle

1. 2PG double roller crusher is composed of a fixed extruded roller and a movable one, which rotate opposite and synchronous.
2. The material get into the crusher from the above of two rollers and are took into by extruded rollers. The desired products are discharged by 50-300Mpa effect.
3. The force to material increases gradually when the material are bit by rollers. The max pressure can be 300Mpa. The discharged material, in addition to containing a certain proportion powder, and rest material interior have the large amount of crack, which save the grinding energy in the next crushing process.

Technical parameters

Model Feeding size
(mm)		 Discharging size(mm) Capacity
(t/h)		 Motor power
(kw)		 Weight
(t)		 Dimension
(mm)
2PG400×250 <35 ≤2-8 2-10 2×5.5 1.3 2110×870×810
2PG610×400 <65 ≤2-20 5-20 2×15 3.9 3510×1420×1030
2PG750×500 <75 ≤2-25 10-40 2×18.5 9.5 4210×1630×1260
2PG800×600 <80 ≤2-25 12-45 2×22 10.8 4505×1780×1320
2PG1000×700 <100 ≤3-30 20-65 2×30 14.9 5310×2175×1595
2PG1200×800 <120 ≤3-35 35-80 2×37 25.5 6290×2270×1870
2PG1500×800 <130 ≤3-45 50-120 2×75 33.7 7460×2410×2290
2PG1600×1000 <150 ≤3-50 60-140 2×90 41.2 8220×2680×2475
