Applicable materials:Stone mining, metallurgy industry, building material, highway, railway and chemical etc.
Application scope:Stone mining, metallurgy industry, building material, highway, railway and chemical etc.

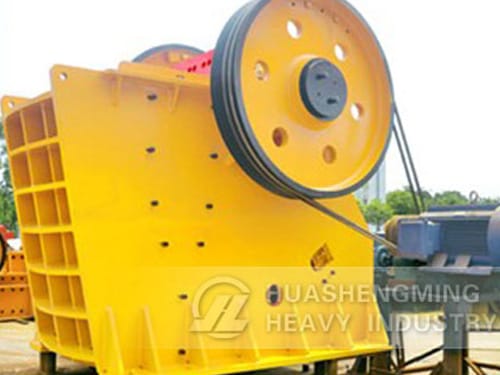

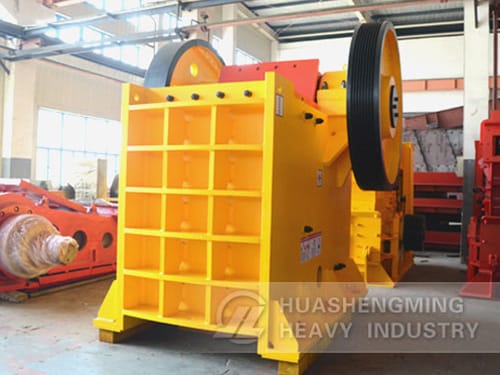

PE/PEX Series Jaw Crushers is of single toggle type, and used widely in mine, metallurgy, construction, road, railway, hydro-electric and chemistry etc. It is suitable for the primary or secondary crush of large rock with compressive resistance no more than 320MPa. PE Jaw Crusher is used for primary crushing, and PEX jaw crusher is used for secondary and fine crushing.
Customized Crushing Solution for Your Raw Materials

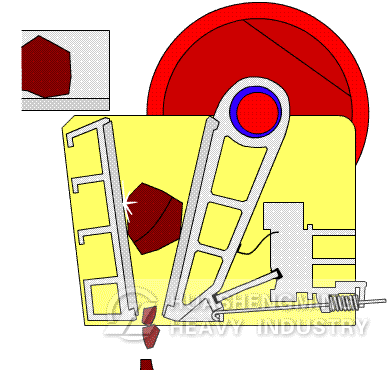

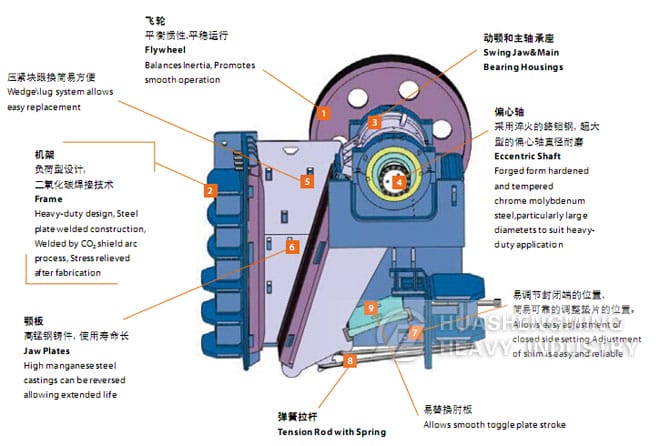

chat onlineThe motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
| Model | Opening size (mm) |
Max. feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Dimension (L x W x H) (mm) |
| PE-150 | 150×250 | 125 | 10-40 | 1-3 | 5.5-7.5 | 0.7 | 922*745*933 |
| PE-200 | 200×300 | 165 | 20-70 | 2-8 | 11 | 0.8 | 1056*1100*1120 |
| PE-250 | 250×400 | 210 | 20-80 | 5-20 | 15-18.5 | 3 | 1108*1142*1392 |
| PE-400 | 400×600 | 340 | 40-90 | 10-40 | 30 | 7.2 | 1700*1732*1392 |
| PE-350 | 350×750 | 290 | 30-55 | 20-50 | 37 | 8.9 | 1900*1806*1808 |
| PE-500 | 500×750 | 425 | 50-100 | 34-68 | 55 | 11.32 | 2050*1860*2145 |
| PE-600 | 600×900 | 480 | 75-200 | 40-120 | 75 | 17.6 | 2792*2168*2250 |
| PE-750 | 750×1060 | 630 | 80-200 | 80-160 | 90 | 30.53 | 3480*2876*3330 |
| PE-900 | 900×1200 | 750 | 100-200 | 110-200 | 110 | 50 | 4180*2560*3070 |
| PE-1000 | 1000×1200 | 850 | 195-265 | 315-500 | 110 | 55 | 4200*3300*3500 |
| PE-1200 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 100 | 5200*2900*3500 |
| PEX-150 | 150×750 | 125 | 10-40 | 5-15 | 15 | 3.5 | 1200*1480*1180 |
| PEX-250 | 250×1000 | 210 | 15-65 | 10-32 | 30 | 4.35 | 1580*1992*1380 |
| PEX-250 | 250×1200 | 210 | 15-60 | 12-38 | 37 | 8.7 | 1730*2192*1380 |
| PEX-300 | 300×1300 | 250 | 20-90 | 16-65 | 45-55 | 11.6 | 1930*2400*1747 |
