Mobile roller sand making machine

Applicable materials:River pebbles, calcite, quartz stone, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt, etc.

  • Feed size:25-100mm
  • Productive capacity:2-400t/h

Application scope:Highways, high-speed railways, high-rise buildings, municipal administration, hydropower dam construction, concrete mixing stations, sand and gravel yards, etc.

Follow Us:

Product description

Introduction to mobile roller sand making machine

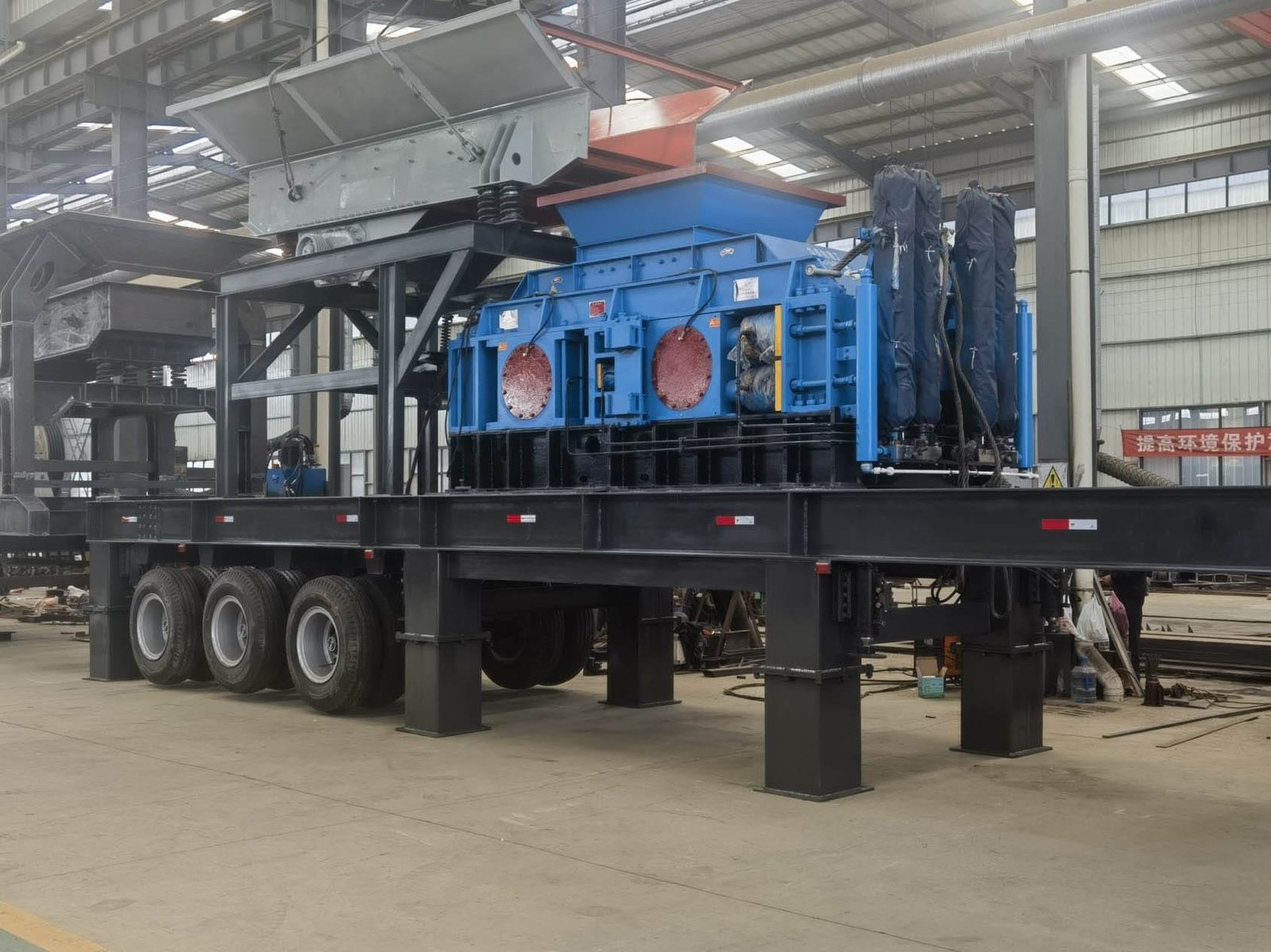

Mobile roller sand making machine
Mobile roller sand making machine is a new type of energy-saving and environmentally friendly crushing equipment developed by our company based on foreign high-tech and the current status of the domestic sand and gravel industry. It is a movable crusher and movable sand making machine. It can be moved at will and is extremely It greatly solves the limitation of displacement space in crushing operations and expands the concept of crushing operations.

Applicable materials introduction

Crushing and sand making work of river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, limestone, weathered sand, diabase, granite, basalt and other materials.

Crushed materials

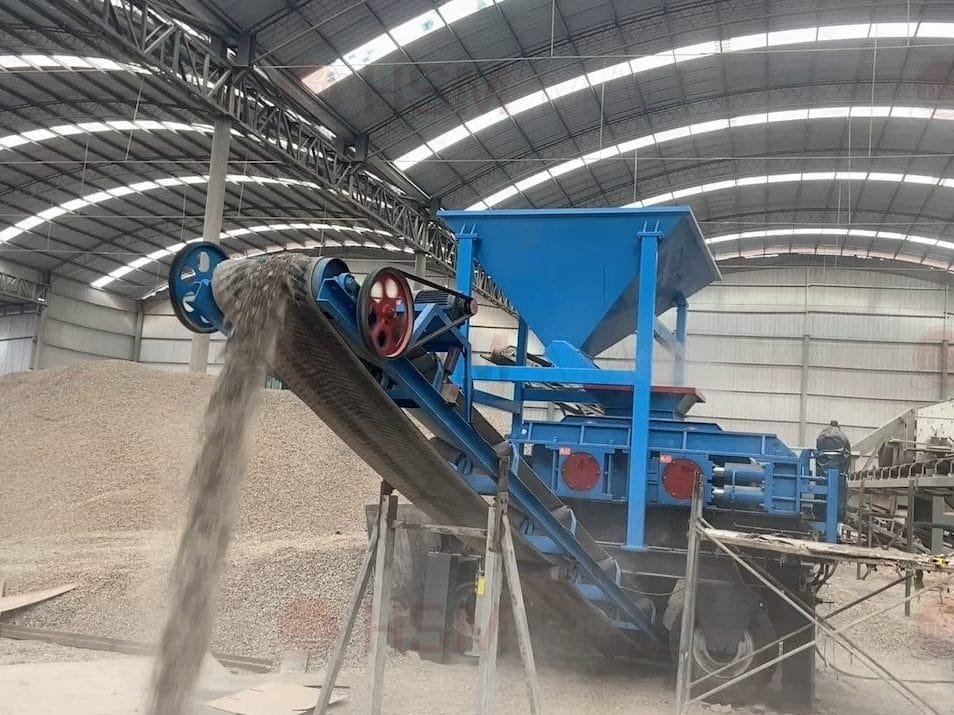

Product display

Performance advantages

1. Integrated complete unit
2. Strong adaptability and flexible configuration
3. Reduce material transportation costs
4. The work effect is direct and effective
5. Adopt all-wheel drive to achieve on-site steering
suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

Mobile roller sand making machine uses two sets of independently driven rollers,to crush materials by squeezing and grinding shear forces generated by relative rotation. The material falls between the two rollers through the feeding port. After being squeezed and crushed by the pair of rollers, the finished product falls naturally. When encountering extremely hard or unbreakable materials, the rollers can automatically retreat by the action of the hydraulic cylinder or spring, making the gap between the two rollers The gap between the two rollers increases, and the hard or unbreakable materials naturally fall down to ensure that the machine is not damaged. The two oppositely rotating rollers can adjust the pressure of the hydraulic cylinder or spring to control the discharge granularity of the product.

Technical parameters

Model Roller
diameter
(mm)
Roller
length
(mm)
Max feeding
size (mm)
Discharging
size (mm)
Capacity
(t/h)
Motor
power
(kw)
Weight
(kg)
Dimension
(L×W×H)
450×500 450 500 200-500 15-100 30-60 7.5×2 3800 2260×2200×766
600×750 600 750 300-600 20-120 60-100 11×2 7200 2780×3065×1310
600×900 600 900 300-600 30-150 80-120 18.5×2 7800 4500×1900×1350
800×1050 800 1050 500-800 30-150 100-160 22×2 12600 2550×2050×1100
900×900 900 900 600-900 30-200 150-200 22×2 13500 2780×4100×1550
1015×760 1015 760 700-950 30-200 150-200 45×2 18800 7800×3200×1980
1200×1500 1200 1500 800-1050 30-200 200-300 55×2 52000 8010×4500×2050
  • Pre-sale

    Free tailored crushing solutions and product customization

  • In-sale Service

    Assist clients with detailed construction plans

  • After-sale

    Our eperienced engineers provide on-site guidance for installation, debugging and training for customers
