Sizing Teeth Roller Crusher

Applicable materials:Coal, construction material, industrial material, mixed/medium strength ores etc.

  • Feed size:50-1500 mm
  • Productive capacity:80-3000 t/h

Application scope:Coal, construction material, industrial material, mixed/medium strength ores etc.

Follow Us:

Product description

Sizing teeth roller crusher is used for crushing material from 50-1500mm to 15-300mm, capacity can reach 80-3000t/h. Crushing Strength: <200mpa.
Coal: Raw coal with rock and clean coal sizing.
Construction Materials: Limestone, Gypsum, Marl, Clay
Industrial Materials: Borax, Chalk, Kimberlite, Oil Sands
Mixed/Medium Strength Ores: Gold, Nickel, Silver, Copper
Miscellaneous: Overburden, Coke, Carbon Anodes.

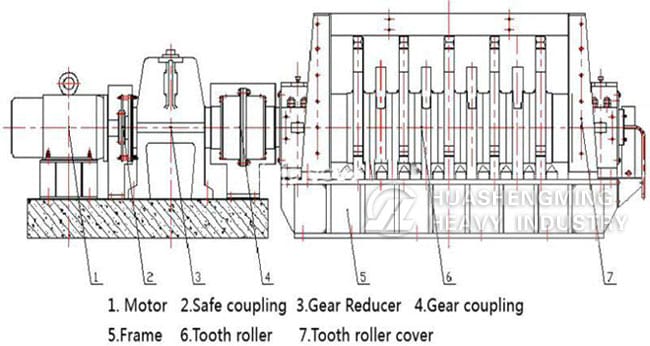

Structures:
The structure of HSM Sizing Teeth Roller Crusher make the output material powder percent very low.

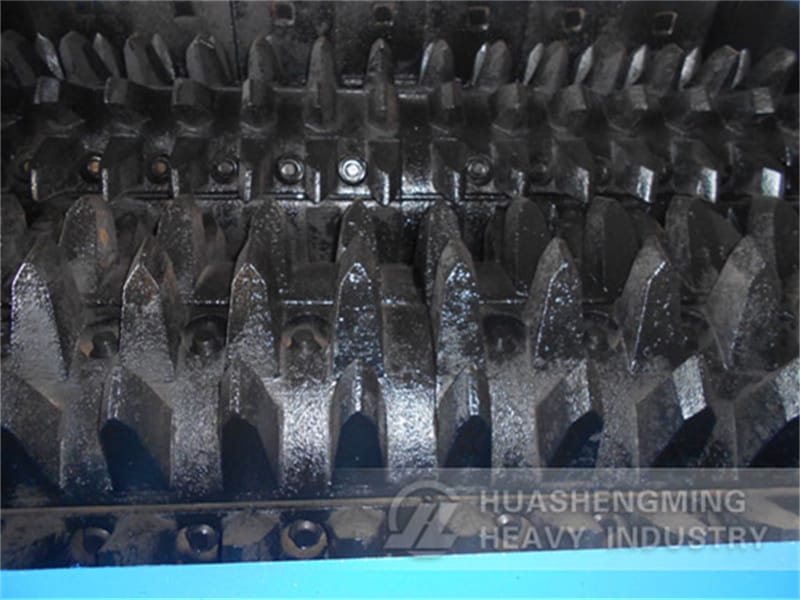

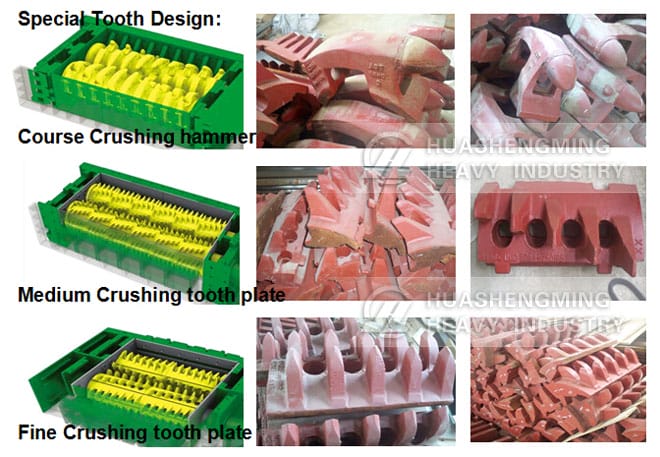

According to the optimum design of crushing tooth shape and tooth layout, the two rollers relative rotation as a grizzly. So as to make the material which size is bigger than request will be crushed and material which meet the size need will be directly pass through. Discharging sizes to be block shape, less fine power, low energy consume.
suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

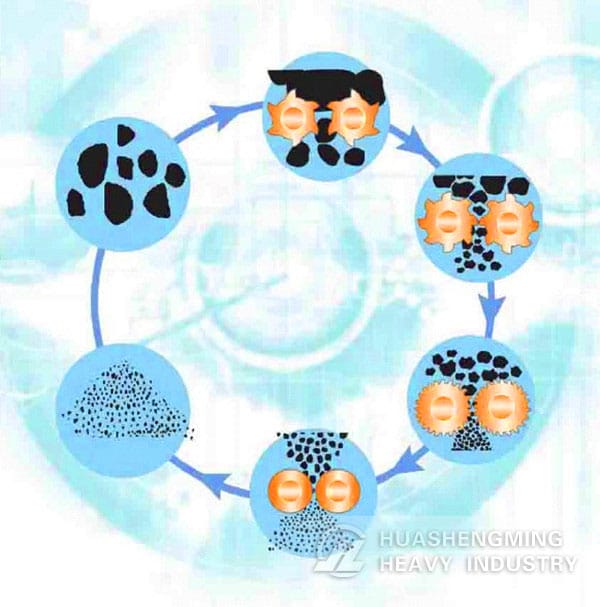

working principle

1.material be feed to our crusher machine and begin first screening-screen the material which size no need be broken .
2. the material can’t past the teeth roller will be broken to small size.
3. material finish break and get the finished products you need.

Technical parameters

140 Series Sizing Teeth  Roller Crusher For Coarse Crushing
Model Specification 2PLF-140/150 2PLF-140/200 2PLF-140/250 2PLF-140/300
Inlet Size(mm) ≤1500 ≤1500 ≤1500 ≤1500
Discharge Size(mm) ≤300 ≤300 ≤300 ≤300
Capacity(t/h) 1300-2500 1700-3800 2200-4600 2700-5500
Single Driven Type Motor Power(kw) 315-355 355-450 400-560 450-630
Dual Driven Type Motor Power(kw) 2×(185-280) 2×(200-315) 2×(220-355) 2×(250-400)
120 Series Sizing Teeth Roller Crusher For Coarse Crushing
Model Specification 2PLF-120/150 2PLF-120/200 2PLF-120/250 2PLF-120/300
Inlet Size(mm) ≤1200 ≤1200 ≤1200 ≤1200
Discharge Size(mm) ≤300 ≤300 ≤300 ≤300
Capacity(t/h) ≤1500 ≤2000 ≤2700 ≤3300
Single Driven Type Motor Power(kw) 315-355 355-450 450-560 560-630
Dual Driven Type Motor Power(kw) 2×(132-185) 2×(160-220) 2×(185-250) 2×(200-315)
100 Series Sizing Teeth Roller Crusher For Coarse Crushing
Model Specification 2PLF-100/160 2PLF-100/200 2PLF-100/250
Inlet Size(mm) ≤700 ≤700 ≤700
Discharge Size(mm) 50-150 50-150 50-150
Capacity(t/h) 280-850 350-1000 500-1500
Single Driven Type Motor Power(kw) 160-200 160-250 200-315
Dual Driven Type Motor Power(kw) 2×(90-132) 2×(110-160) 2×(132-200)
80 Series Sizing Teeth Roller Crusher For Medium Crushing
Model Specification 2PLF-80/150 2PLF-80/200 2PLF-80/250 2PLF-80/300
Inlet Size(mm) ≤550 ≤550 ≤550 ≤550
Discharge Size(mm) 50-150 50-150 50-150 50-150
Capacity(t/h) 200-600 260-750 300-1000 400-1150
Single Driven Type Motor Power(kw) 132-160 160-200 185-250 250-280
Dual Driven Type Motor Power(kw) 2×(75-90) 2×(90-132) 2×(110-185) 2×(132-220)
50 Series Sizing Teeth Roller  Crusher For Fine Crushing
Model Specification 2PLF-50/60 2PLF-50/120 2PLF-50/150 2PLF-50/200
Inlet Size(mm) ≤300 ≤300 ≤300 ≤300
Discharge Size(mm) 50-150 50-150 350-150 50-150
Capacity(t/h) 80-240 200-600 250-700 300-800
Single Driven Type Motor Power(kw) 37 75 90 160
Dual Driven Type Motor Power(kw) 2×18.5 2×37 2×45 2×75
