Applicable materials:river pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt
Application scope:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Rock Crushers and Stone Crushing Equipment
In mining, aggregates, and mineral processing, raw materials are often too large for direct use or sale. After collection, harvesting, or extraction, materials need size reduction for better market value. Rock crushers efficiently reduce the size of these materials. They break down large and medium rocks, making processing easier and more efficient.
A stone crusher machine reduces large materials into smaller pieces. Common types include jaw crushers, impact crushers, heavy hammer crushers, and double roller crushers. These machines use mechanical force to break rocks instead of chemicals or lasers. Primary crushers are often part of a larger material processing system. They work with secondary crushers, sand makers, sorters, conveyors, and screens.
For example, a double roller crusher can serve as a fixed part of a sand plant production line. Alternatively, with wheels attached, it can operate flexibly on-site, easily transported by a trailer.
stone crusher machine have durable, heavy-duty jaws or rollers in their chambers. These components crush materials effectively. Raw materials enter the crusher, and the jaws or rollers move to reduce the size. Sites often use multiple crusher types.
Heavy-duty crushers, like jaw crushers, handle the largest rock blocks. Secondary crushers, such as cone crushers, break these blocks into smaller sizes. Finally, in tertiary crushing stages, double roller crushers produce even finer materials. Afterward, smaller pieces are sent to screening or sorting machines for further processing.
Crushers are essential in many industries. Quarries, mining operations, construction, demolition, and recycling frequently use this heavy equipment.
Road Construction: Crushers produce certified coarse aggregates for building durable roads.
Construction Sites: Crushed materials become essential components for site projects.
Pipeline Installation: Crushers create the base layers required for laying pipes.
Rock Salt Production: Crushers process rock salt for icy roads.
Glass Recycling: Recycled glass from crushers can be melted into new products.
Rock crushers and stone crusher machine play a vital role in processing raw materials. They ensure efficient size reduction for easier handling and better market value. From primary jaw crushers to tertiary double roller crushers, each machine adds precision to the process. Whether fixed or portable, crushers adapt to various industries and deliver reliable results.
Choose the right crusher for your operation and maximize productivity today.

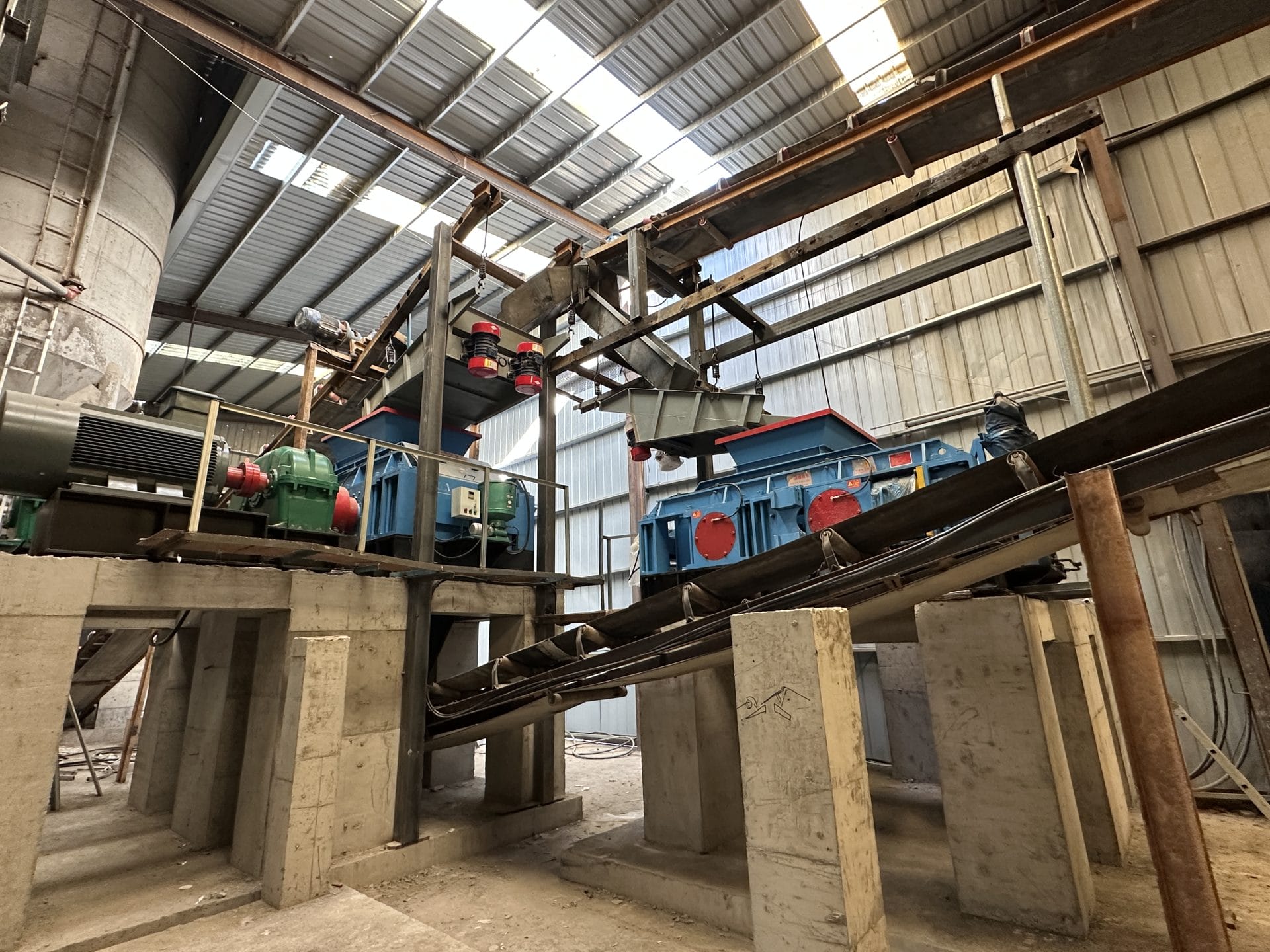

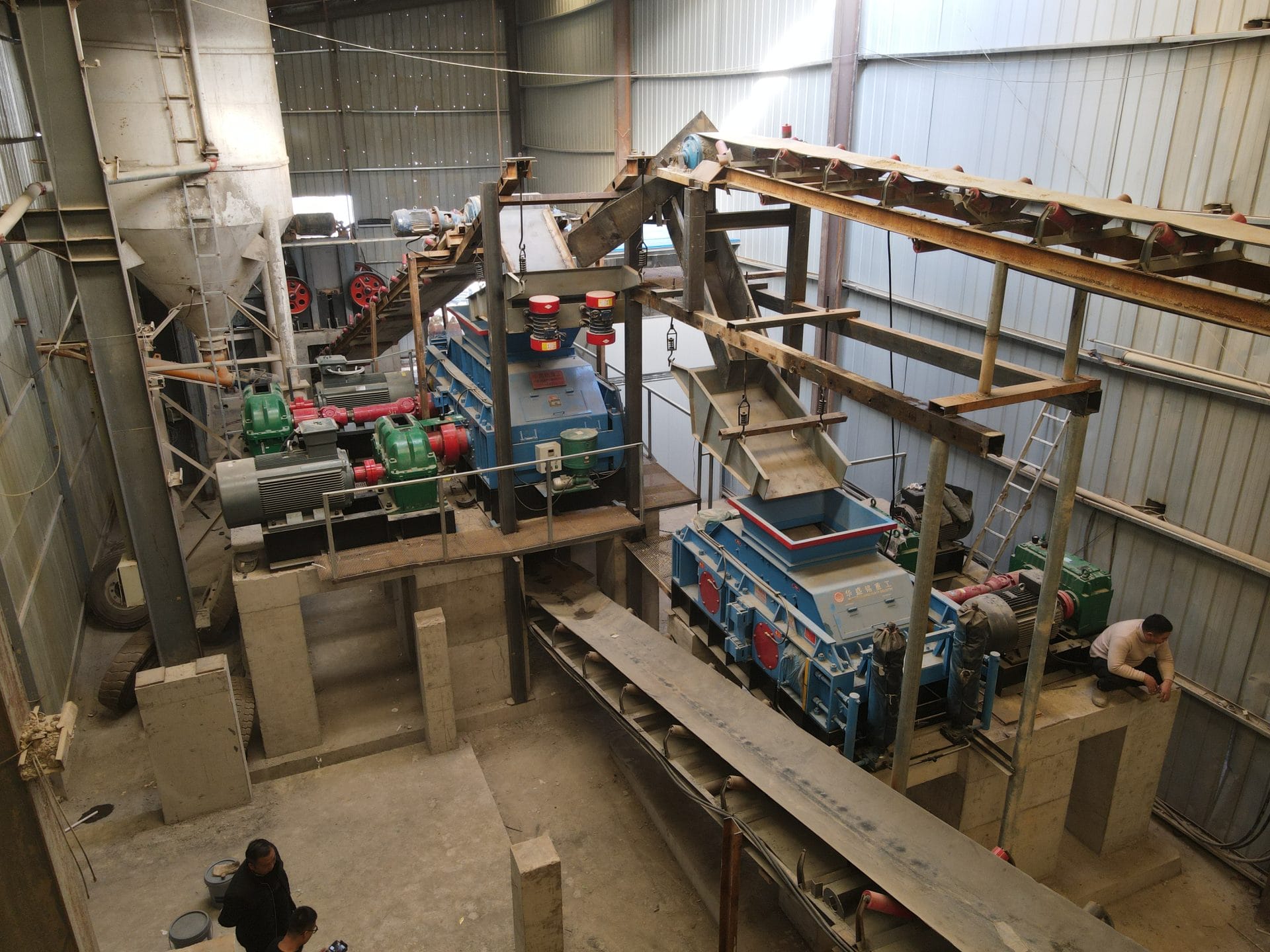

How to configure a 60 ton/h double roller crusher sand making production line.
Customized Crushing Solution for Your Raw Materials

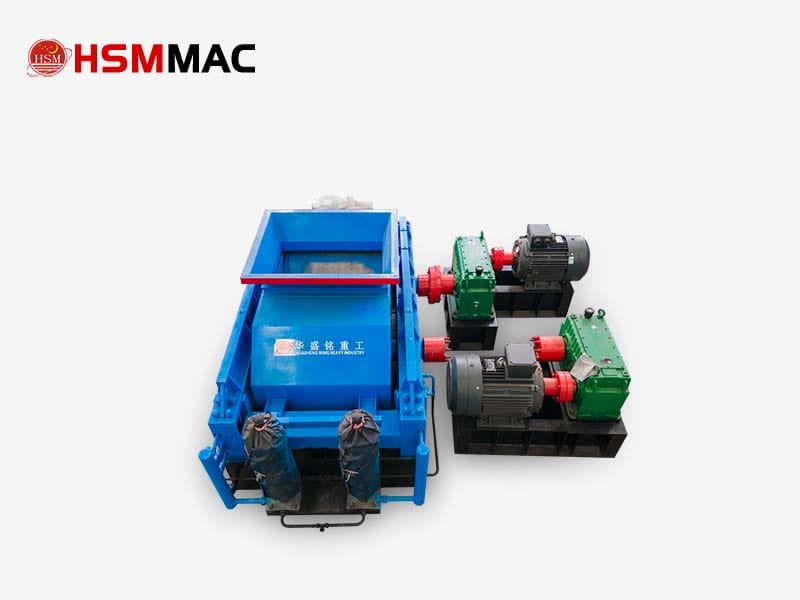

chat onlineThe double roll crusher uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.
Specification and model
|
Roll diameter (mm) |
Feed size (mm) |
Productive capacity (t/h) |
2PGT400×250
|
φ400
|
≤25
|
2-10
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
2PGY800×1000 |
φ800
|
≤40
|
50-80
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
Application scope:Highways, high-speed railways, high-rise buildings, municipal administration, hydropower dam construction, concrete mixing stations, sand and gravel yards, etc.
Application scope:River pebbles, calcite, quartz, marble, cobblestone, bentonite, iron ore, bluestone, mountain stone, slag, limestone, weathered sand, diabase, granite, basalt, etc.
Application scope:Limestone, bluestone, granite, iron ore, coal gangue, quartz stone, river pebbles, coal, refractory materials, etc.
Application scope:Highways, high-speed railways, high-rise buildings, municipal administration, hydropower dam construction, concrete mixing stations, sand and gravel yards, etc.
