Applicable materials:Hard and mid-hard rocks and ores like iron ore, copper, limestone,quartz and granite etc.
Application scope:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

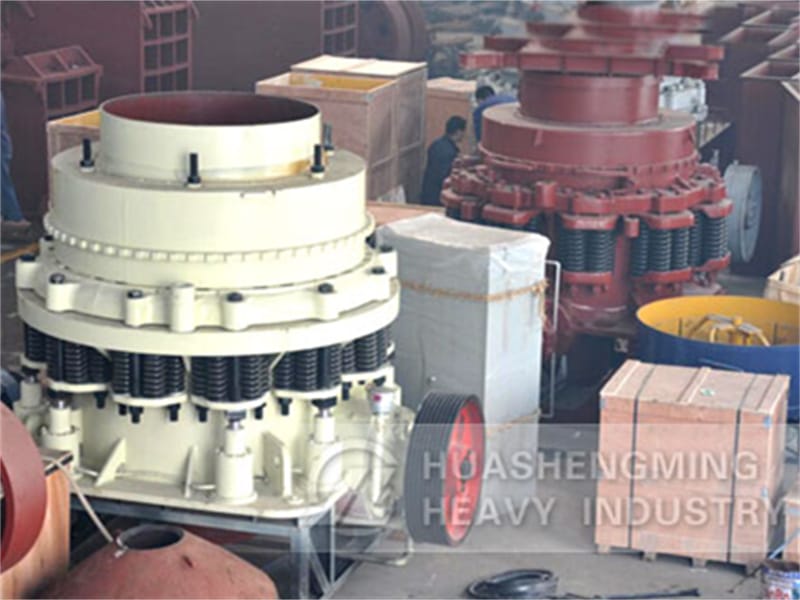

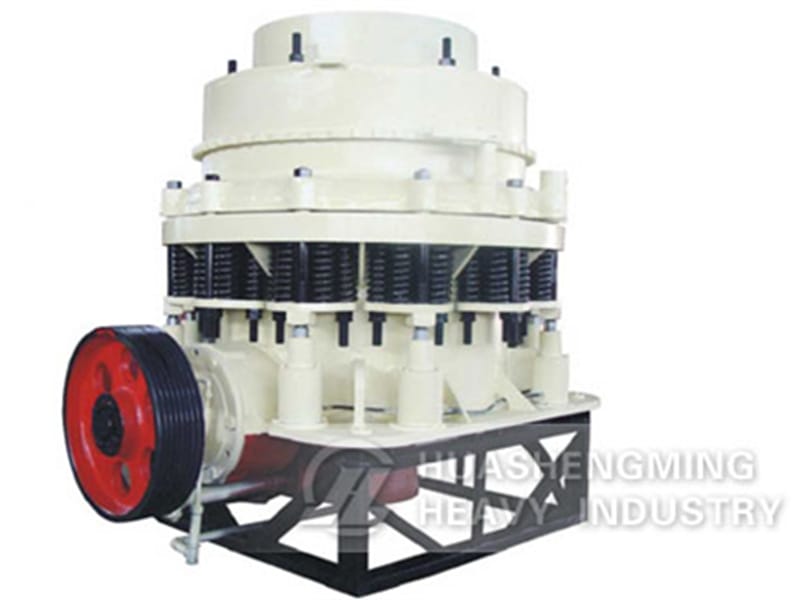

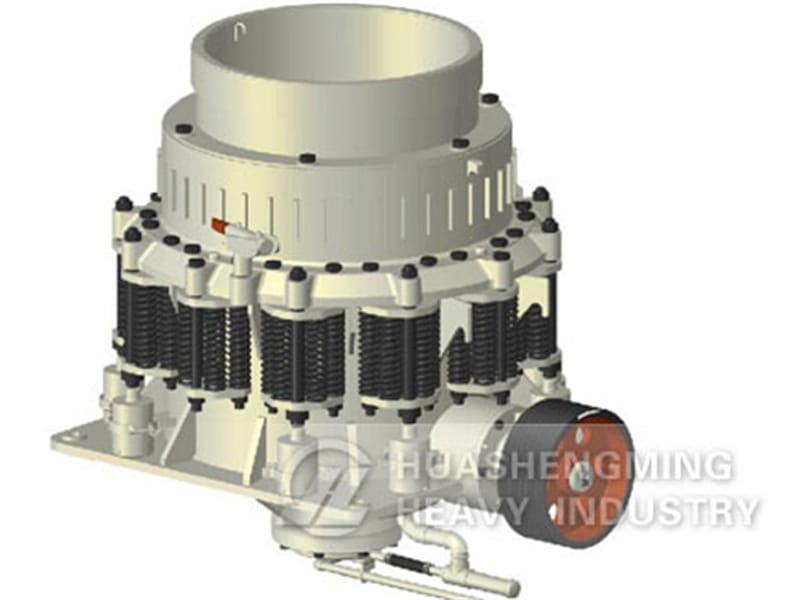

Symons Cone crusher is a typical pyramid crusher, stone crushing its basic form and jaw crusher is no essential difference between the extrusion of the material through which it shatter. Therefore, the cone crusher in terms of energy consumption is energy, from the wear and tear in terms of wear parts wear cycle is relatively long. Therefore, the cone crusher production costs relatively satisfactory, especially wear parts replacement cycle is relatively long, greatly enhance the efficiency of production. However, due to the structure of the cone crusher is more complex, precision manufacturing is relatively high, the price is not cheap. Therefore, the cone crusher is a kind of high procurement costs, lower operating costs of high-grade crushing equipment, is an important choice for large-scale crushing equipment crushing system.
Customized Crushing Solution for Your Raw Materials

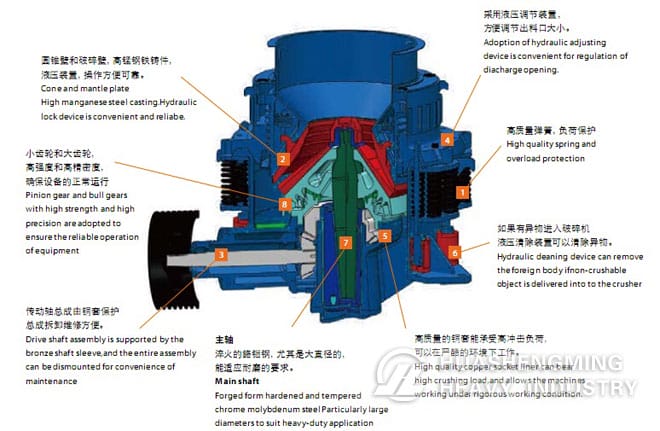

chat onlineWhen the cone crusher begins to work, the electric motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.
| Model | Movable Cone Diameter (mm) |
Cavity Type |
Feeder Opening Size(mm) |
Discharging Opening Size(mm) |
Main Shaft Speed (r/min) |
Power (kw) |
Capacity (t/h) |
Overall Dimension (mm) |
|
| Shutting Size |
Opening Size |
||||||||
| CS75B | 900(3′) | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880×2164 |
| Coarse | 159 | 175 | 13-38 | 59-163 | |||||
| CS110B | 1200(4′) | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 2821×1974×2651 |
| Medium | 156 | 156 | 13-38 | 100-200 | |||||
| Coarse | 178 | 191 | 19-51 | 141-308 | |||||
| CS160B | 1295 (4 1/4′) |
Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 2800×2342×2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | |||||
| Coarse | 216 | 241 | 19-51 | 172-349 | |||||
| CS220B | 1650 (5 1/2′) |
Fine | 188 | 209 | 16-38 | 485 | 220 | 181-327 | 3911×2870×3771 |
| Medium | 213 | 241 | 22-51 | 258-417 | |||||
| Coarse | 241 | 268 | 25-64 | 299-635 | |||||
| CS315B | 2134(7′) | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 4631×3251×4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse | 334 | 369 | 31-64 | 789-1270 | |||||
