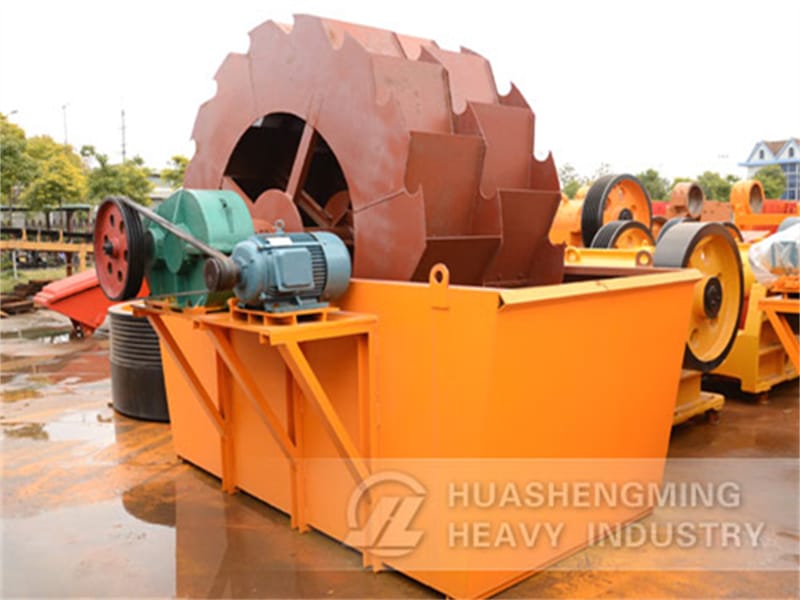

XSD Wheel Sand Washing Machine is a kind of water washing style equipment to match sand making machine. It can reduce the dust and stone powder which mix with the final sand so that Sand Washing Machine can improve the quality of the sand. Sand Washing Machine can ensure cleaning and dewatering affect because of novel-style sealing structure and reliable transmission device.
Customized Crushing Solution for Your Raw Materials
chat onlineThe electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally,the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
| Model | XSD2210 | XSD2610 | XSD2816 | XSD3016 | XSD3216 | XSD3616 |
| Impeller diameter(mm) | Φ2200 | Φ2600 | Φ2800 | Φ3000 | Φ3200 | Φ3600 |
| Impeller speed (r/min) | 1-1.5 | 1-1.5 | 1-1.5 | 1-1.5 | 1-1.5 | 1-1.5 |
| Handling capacity (t/h) | 15-35 | 20-50 | 30-65 | 50-80 | 80-120 | 120-180 |
| Feed size(mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Weight(t) | 2 | 2.68 | 3 | 3.4 | 3.9 | 4.5 |
| Power(KW) | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 |
