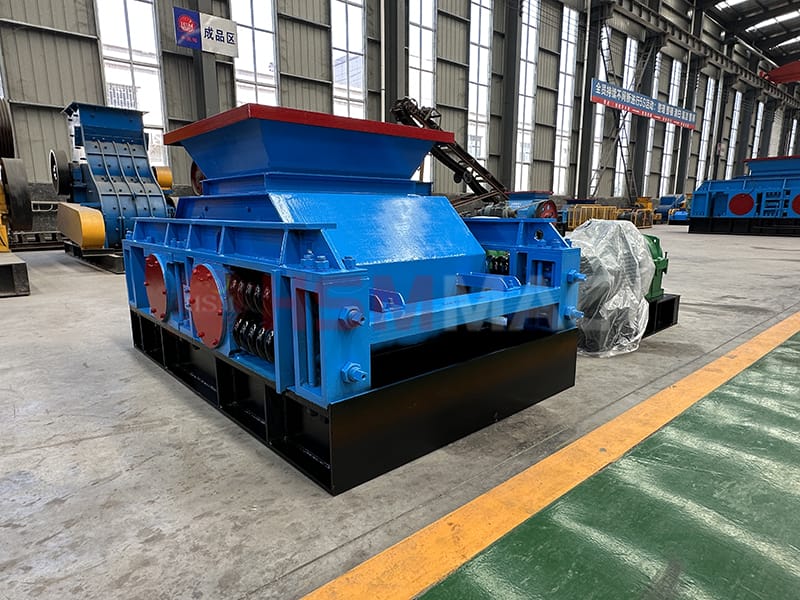

Double Tooth Roll Crusher

Product description

Double teeth roll crusher is mainly used in mining, metallurgy, chemical industry, coal mine to crush coarse, medium size fragile material. Its feeding size is big, discharging size is adjustable. it can crush material of compressive strength below 160Mpa. Especially in coal industry, double teeth roll crusher can crush raw coal and coke directly after removing iron and impurity, no need to remove gangue. crushed material is uniform granularity, low over crushing ratio, it simplified coal selecting process, reduced investment and production cost.

suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online

River pebble sand making
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

working principle

1. The fixed roller and movable roller are driven by the motor via reducer and v-belt.

2. The raw materials fall into the part between the two rollers from inlet of the machine.

3.The two rollers rotates inward simultaneously, the materials are extruded, crushed and ground, then the end products come out from the bottom of this crusher.

Technical parameters

Model	Roller diameter (mm)	Roller length (mm)	Max feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (kg)	Dimension (L×W×H)
450×500	450	500	200-500	15-100	30-60	7.5×2	3800	2260×2200×766
600×750	600	750	300-600	20-120	60-100	11×2	7200	2780×3065×1310
600×900	600	900	300-600	30-150	80-120	18.5×2	7800	4500×1900×1350
800×1050	800	1050	500-800	30-150	100-160	22×2	12600	2550×2050×1100
900×900	900	900	600-900	30-200	150-200	22×2	13500	2780×4100×1550
1015×760	1015	760	700-950	30-200	150-200	45×2	18800	7800×3200×1980
1200×1500	1200	1500	800-1050	30-200	200-300	55×2	52000	8010×4500×2050
